Information from https://www.northernagmistsprayer.com/3p-pto
3 Models to Choose From:

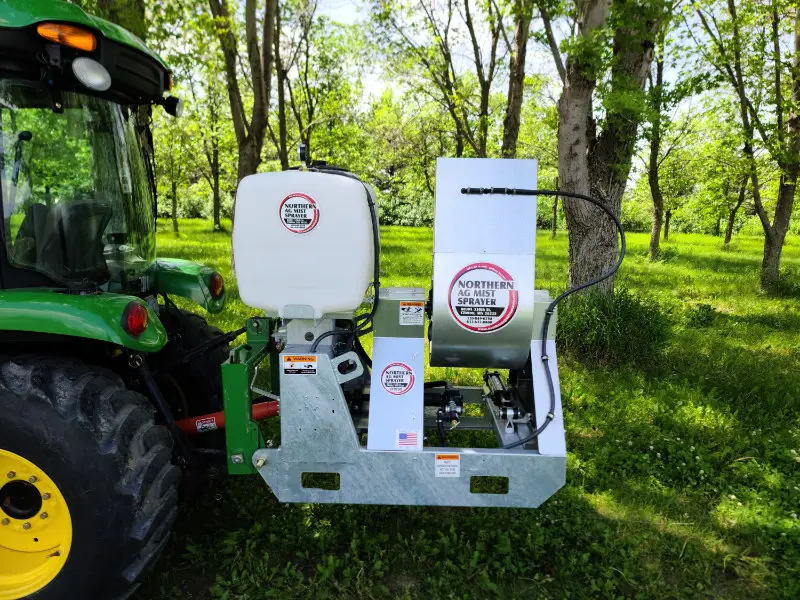

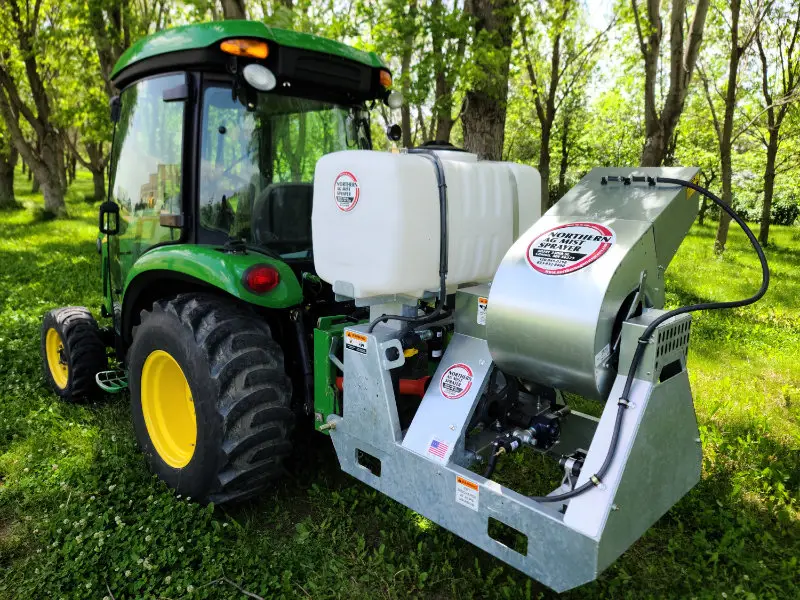

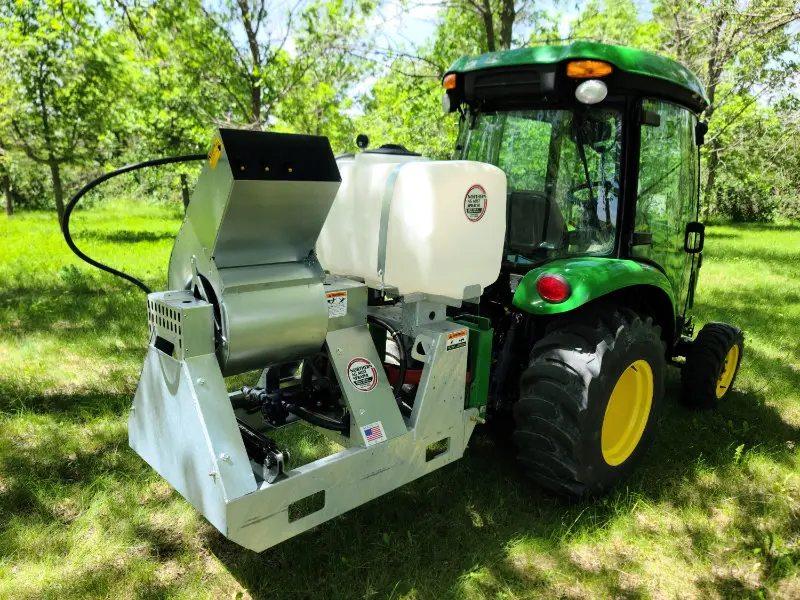

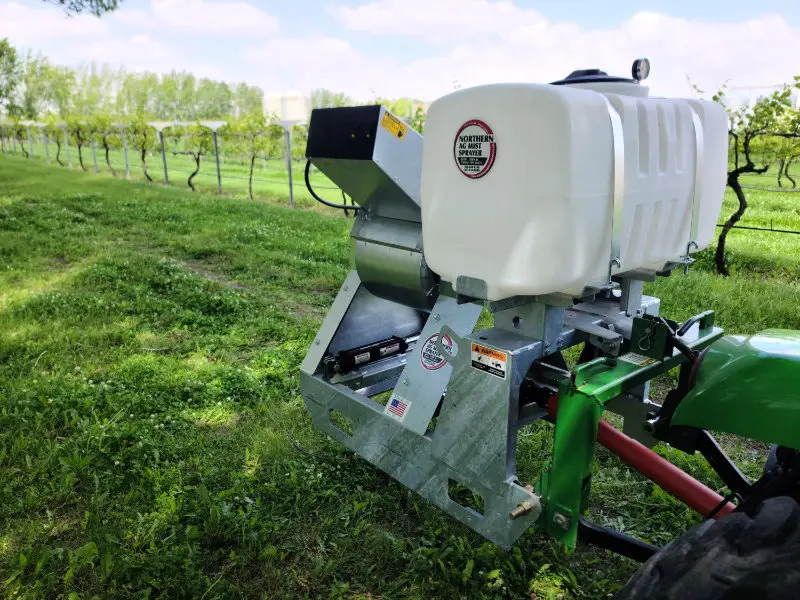

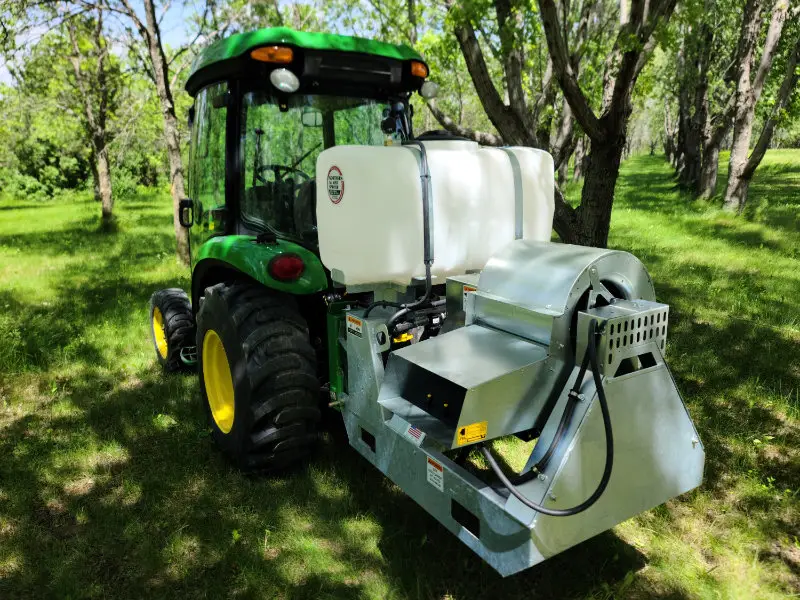

Model 3P-50
50 Gallon Unit
405 lbs Dry Weight
54" L, 37” W, 55” H
Model 3P-100
100 Gallon Unit
440 lbs Dry Weight
54" L, 37” W, 60” H
Model 3P-BL
No pump or liquid.
PTO-driven blower fan.
Get in touch with any questions
Lon Matthiesen Owner (605) 214-2966
Standard:
Hydraulic Cylinder
Fan Safety Rings
Heavy PTO Shaft
Lift Hooks
Hot-dip Galvanized Frame
Pressure Gauge
6-Roller Pump
Cat I And II Hitch pins
Fork-lift handling pockets
Tank drain and sump
Optional:
12 volt actuator
12-volt diaphragm pump
7-roller pump
Hydraulic hoses
Pioneer hose ends
Stainless-steel roller pump
Cat I & II Quick-Hitch pins
Construction
Northern Ag Mist Sprayers or Mist Blowers feature 10 gauge galvanized steel construction, The result is no paint to peel or rust. Spray up to 160 feet without Booms.
Fan rotation 210 degrees from side to side so you can spray either left or right or any angle in between with hydraulic or 12 volt electric actuator. Compatible with category I or II hitch pins.
50 or 100 gallon PCO tanks, 4 & 7 roller or 12 Volt Diaphragm pump. Construction includes 12 inch fan with crimped safety rings,
Easy fill & easy cleaning standard 50 gallon PCO tank. Optional 100 gallon PCO tank available, Oil filled Pressure gauge, electric on and off Flow control Valve. Pressure regulator on all standard equipment.
Mist sprayers use 1/10 the water compared to a boom sprayer, Mist Sprayers provide one of the most efficient ways of applying chemicals with more uniform coverage at a much lower cost compared to other application methods.
